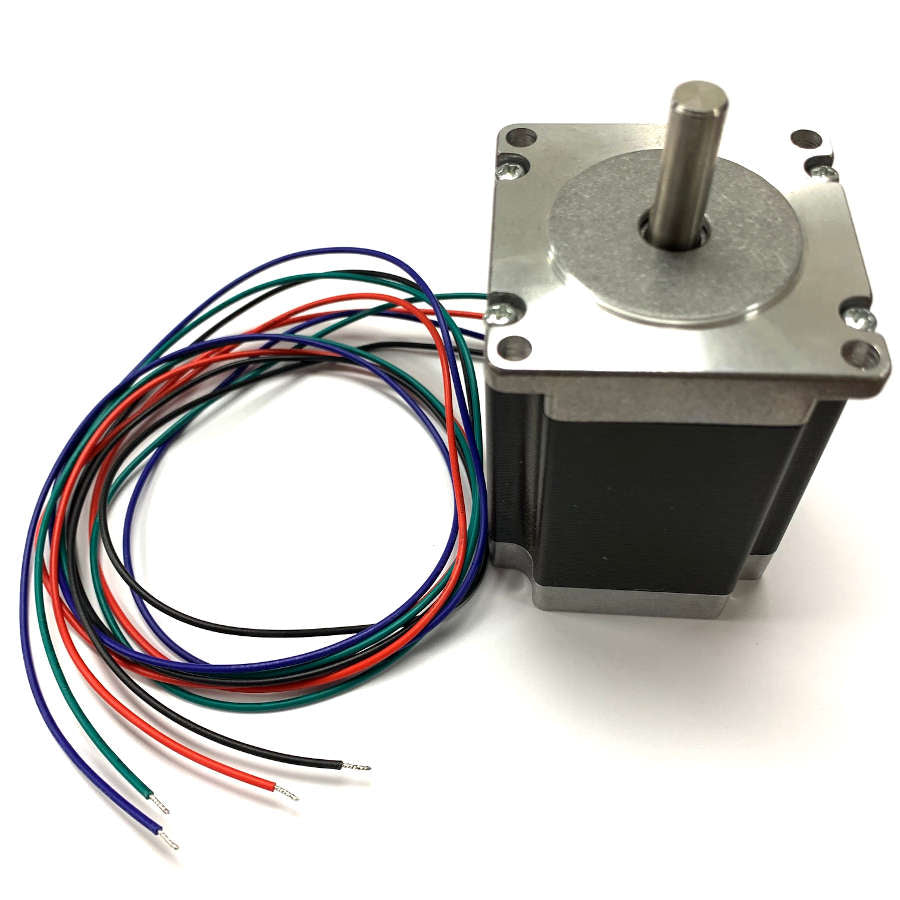

Stepper Motor NEMA 23 (200 steps/rev, 2.7V, 3A, Bipolar)
Stepper Motor NEMA 23 (200 steps/rev, 2.7V, 3A, Bipolar)

Stepper Motor NEMA 23 (200 steps/rev, 2.7V, 3A, Bipolar)

Electrical Characteristics

Number of Phase  2
Step Angle 1.8°
Rated Voltage 2.7V DC
Rated Current 3.0A
Holding Torque  1800mN.m Min (2 Phases)
Phase Resistance 0.9 Ω ± 10% (20°C)
Phase Inductance 3.5mH± 20% (1kHz 1V rms)
Motor Inertia 480g. cm^2
Motor Weight 1050g Ref.
Insulation Resistance 100MΩ Min. (DC 500V)
Insulation Class B (130° C)
