Features:
- N61 Nozzle Series
- Improved temperature recovery time
- Easy-to-clean solder recovery chamber minimizes maintenance and reduces waste

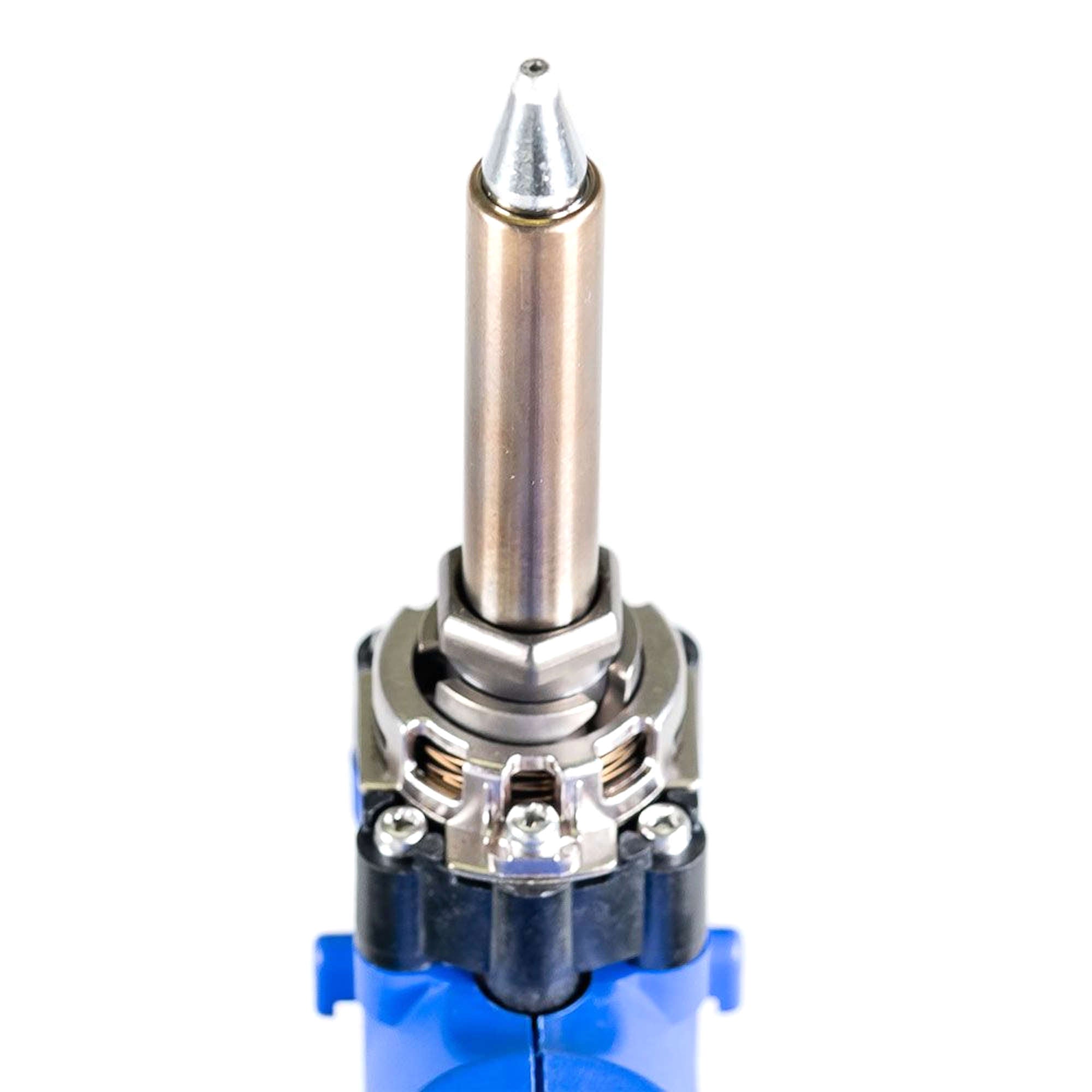

- Fast release tool for the quick-change nozzle system
- Closed-loop sensor integrated heating system for improved thermal performance
- Compatible with lead-free solders
- Ergonomic grip design to minimize stress on your hand and wrist
- Unique pump design that lowers vibration and noise, but improves vacuum pressure and flow

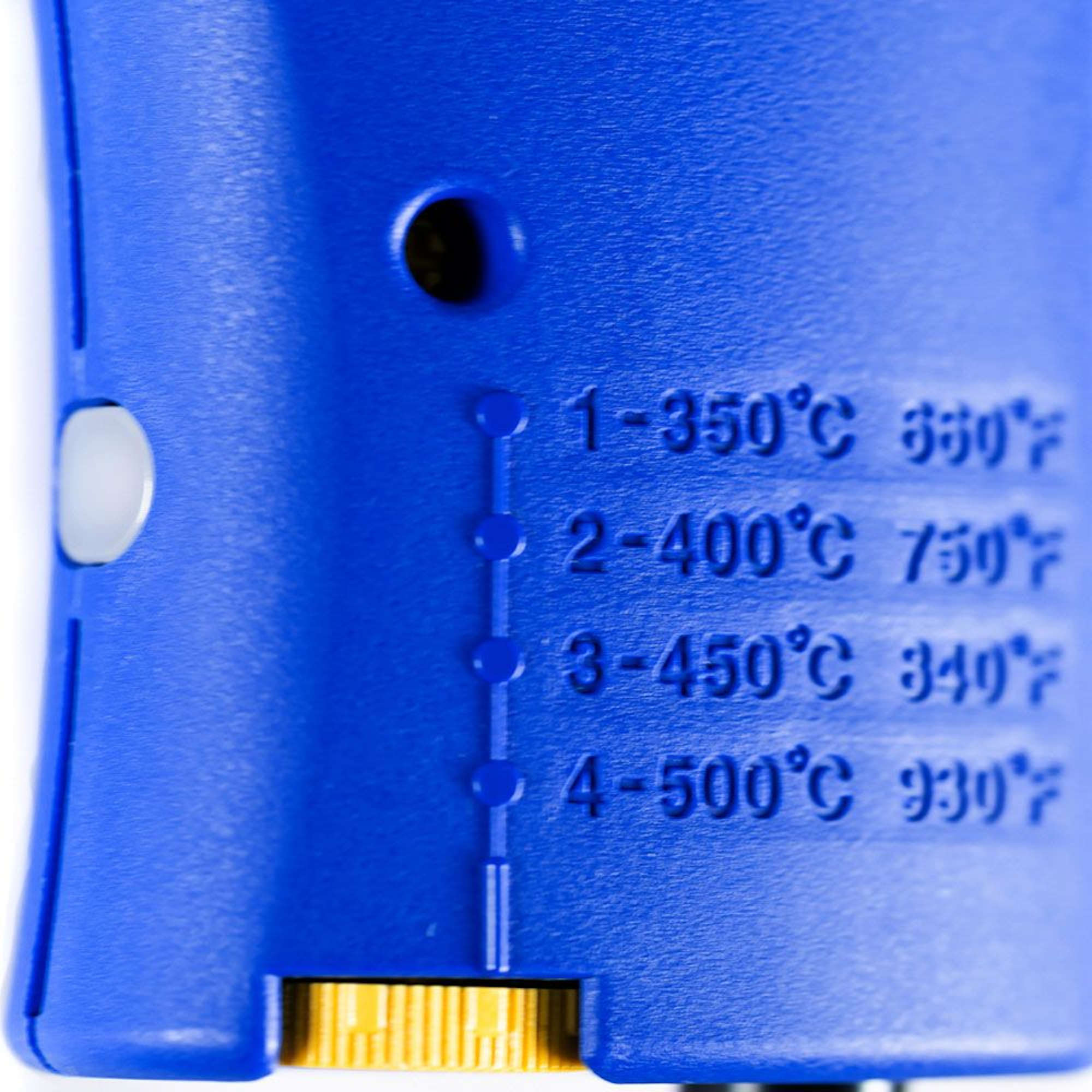

- Easy-to-use adjustable temperature control built into the handle
- Includes storage case and maintenance accessories
Specifications:
| Model Name | FR-301 |
| Part No. | FR301-03/P |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 140W |
| Temperature Range | 350° - 500°C (660° - 930°F) |
| Tip to Ground Resistance | < 2 Ohms |
| Tip to Ground Potential | < 2 mV |
| Temperature Stability and Accuracy | Meets or exceeds IPC J-STD-001 |
| Heating Element | Ceramic |
| Vacuum Source | Single-Cylinder Diaphragm Pump |
| Vacuum Pressure | 81 kPa (610 mm Hg / 24 in. Hg) |
| Suction Flow | 11 L/min |
| Weight (w/o cord) | 0.52 kg (1.1 lb.) |
| Nozzles | N61 Series |
| Standard Nozzle | N61-08 (ø1.0mm) |
| Safety Approval |  |
Note: Let the tool cool down completely before storing it in the carrying case to prevent risk of burn/melting the carrying case.
