LED 7-Segment Display (4-Digit Blue)
LED 7-Segment Display (4-Digit Blue)
LED 7-Segment Display (4-Digit Blue)
LED 7-Segment Display (4-Digit Blue)

This item is archived from our catalog and no longer for sale. This page is available as a reference only.

LED 7-Segment Display (4-Digit Blue)

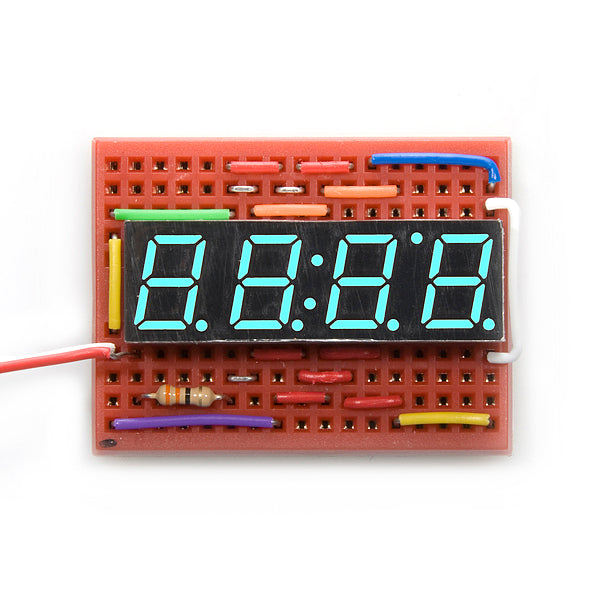

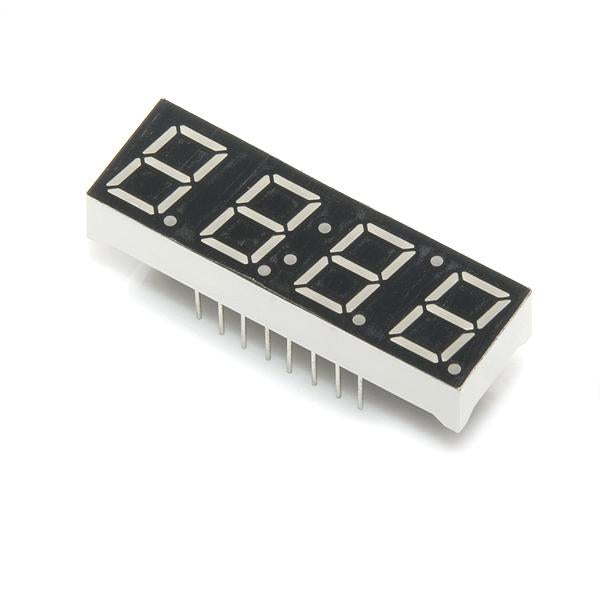

This is a basic, 4-digit 7-segment display - blue in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

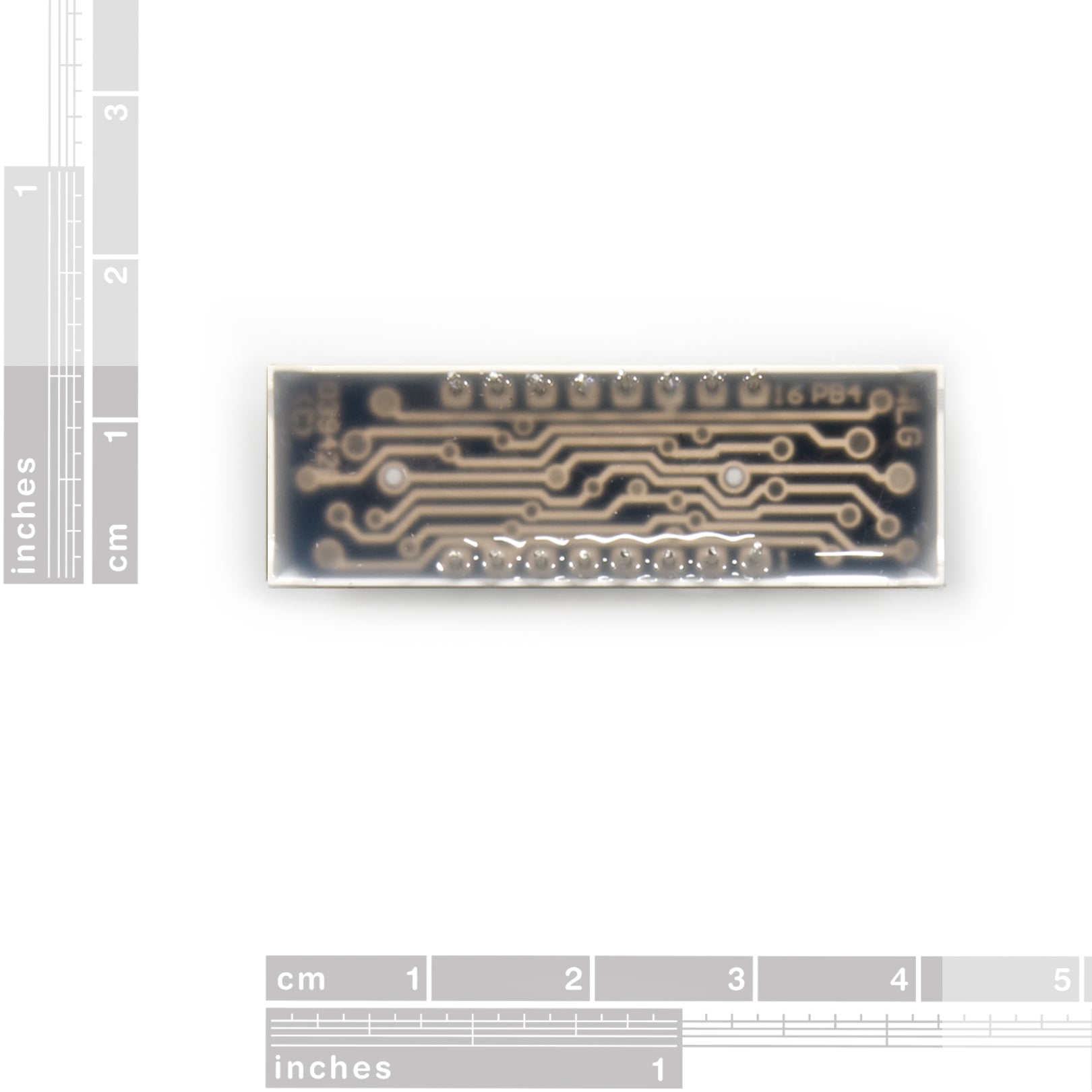

The LEDs have a forward voltage of 3.4VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins.

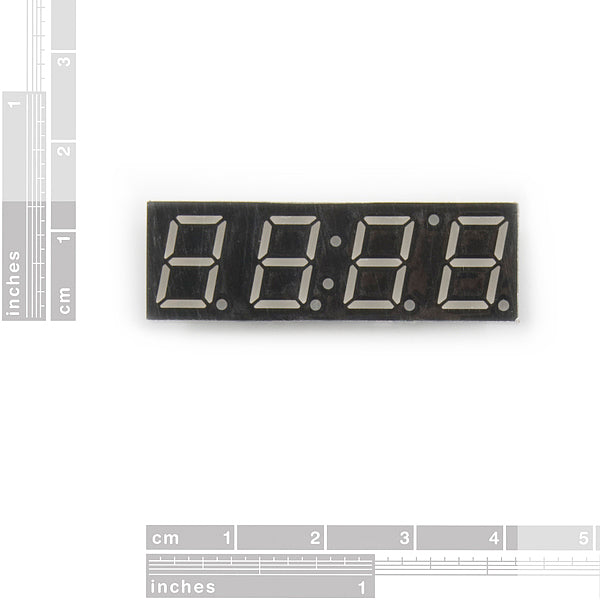

Dimensions:

  • Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
  • Digit Height: 10mm (0.39")

Datasheet:
