- PCB Board Dimension: 3.2cmX1.4cm
- Voltage: 3.3V~5V
- The output in the form: digital switching outputs (0 and 1) and analog AO voltage output
- The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA

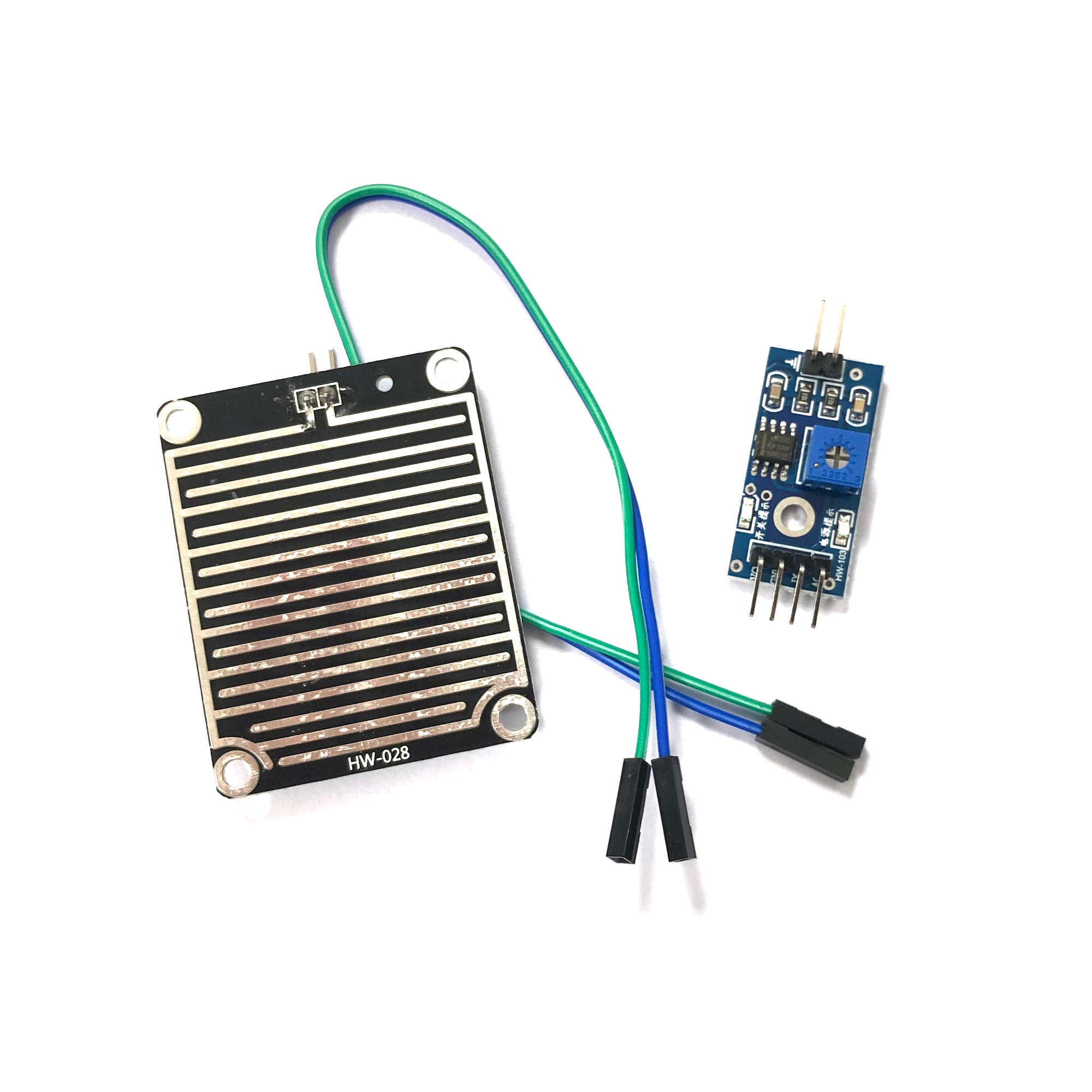

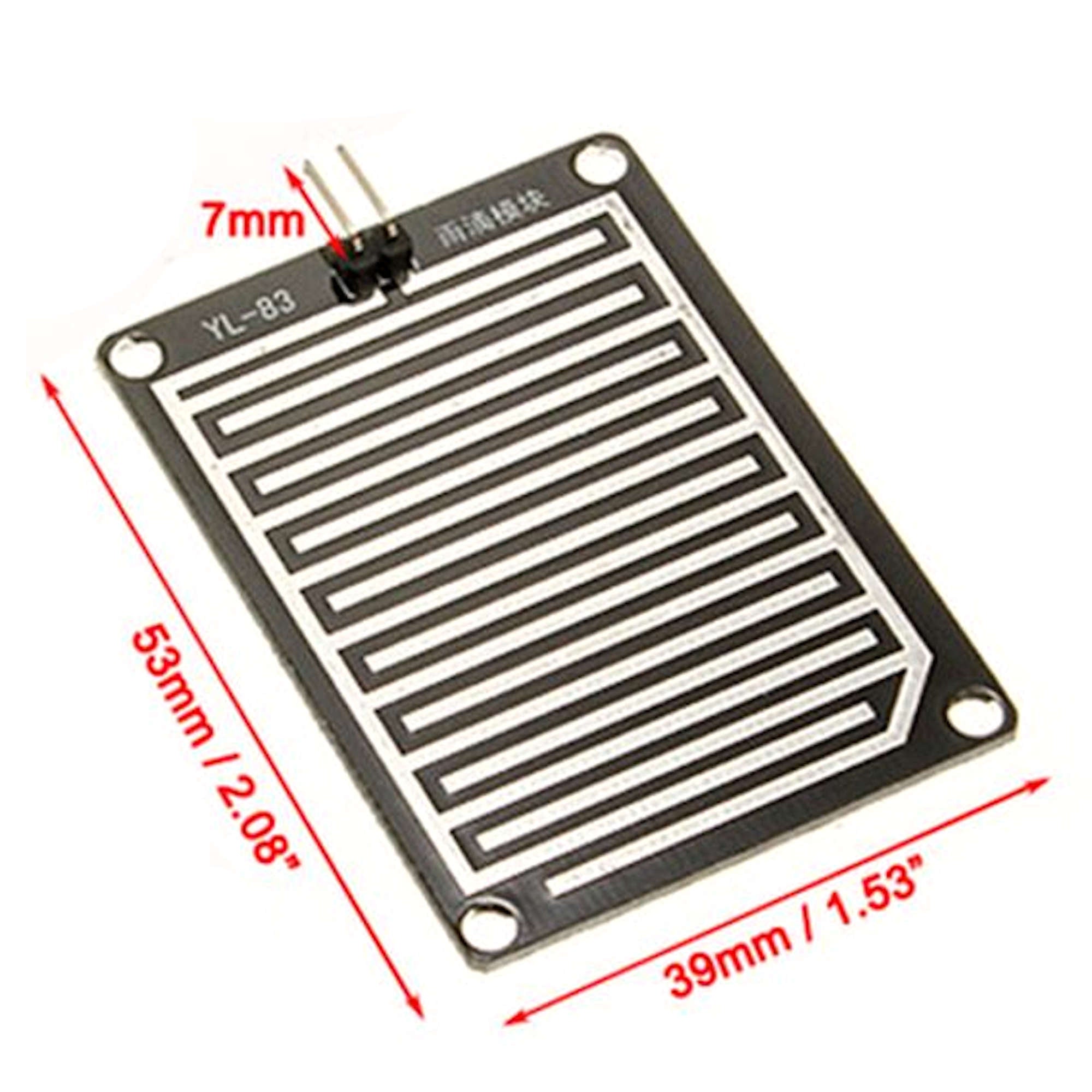

- The sensor USES the high quality FR - 04 double material, large area of 5.5 * 4.0CM, treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance
- A fixed bolt hole for easy installation
- Sensitivity can be adjusted via potentiometer
- Board with positioning holes to facilitate installation

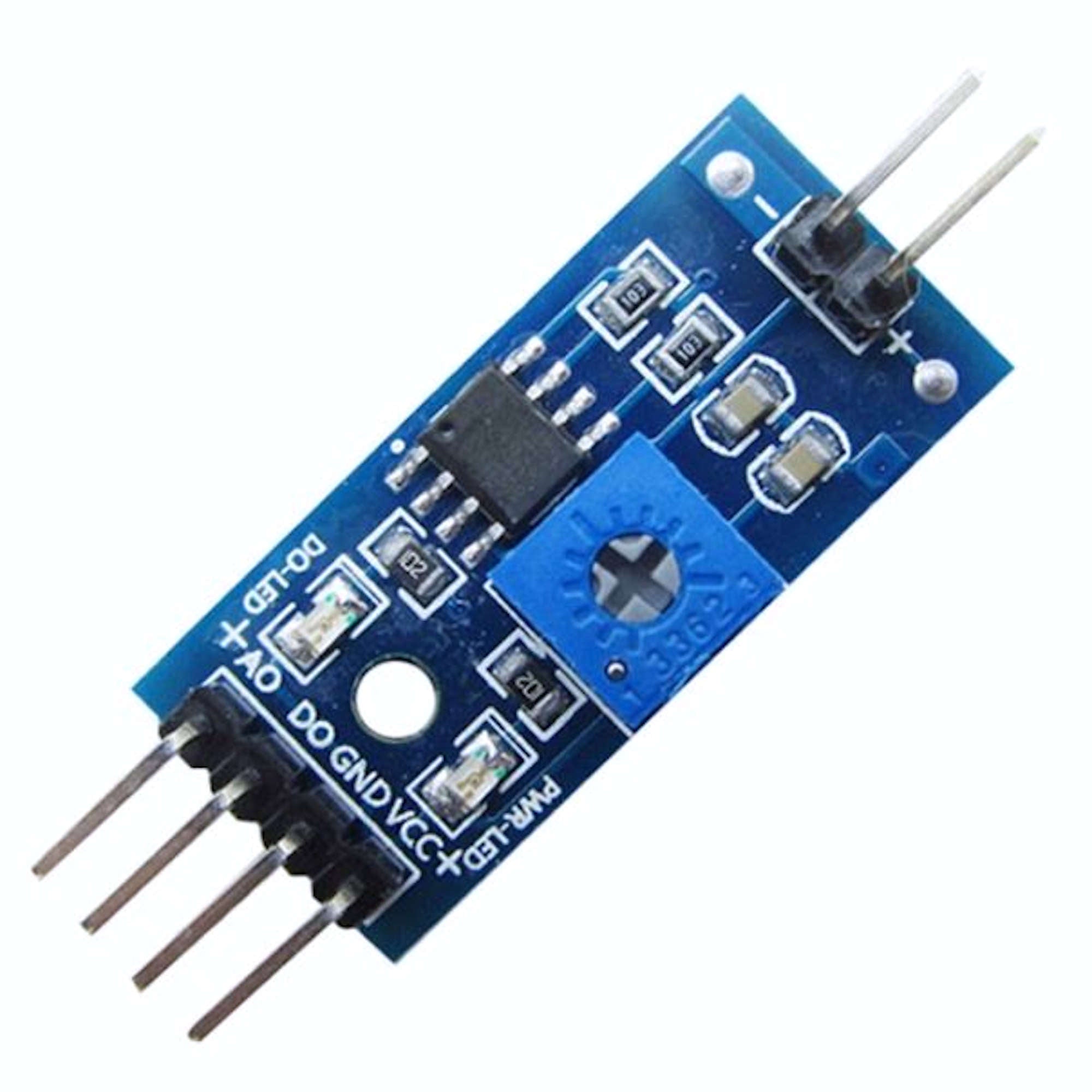

- Wide voltage LM393 comparator
