Arduino Nano 33 BLE Sense
Small, powerful, BT connected and with all the sensors you may need to design innovative applications.
This compact and reliable Nano board is built around the NINA B306 module for BLE and Bluetooth 5 communication; the module is based on Nordic nRF52480 processor that contains a powerful Cortex M4F and the board has a rich set of sensors that allow the creation of innovative and highly interactive designs.
Its architecture, fully compatible with Arduino IDE Online and Offline, has a 9 axis Inertial Measurement Unit (IMU), temperature, pressure, humidity, light, color and even gestures sensors that are managed through our specialized libraries. Its reduced power consumption, compared to other same size boards, together with the NANO form factor opens up a wide range of applications.
This allows the design of wearable devices and gesture based projects that need to communicate to other devices at a close range. Arduino Nano 33 BLE Sense is ideal for interactive automation projects thanks to the multiprotocol BT 5.0 radio.
Dimensions: 45x18mm
Specifications
This board is based on the nRF52480 microcontroller.
Clock | 64MHz |
Flash | 1MB |
RAM | 256KB |
Please note: Arduino Nano 33 BLE only supports 3.3V I/Os and is NOT 5V tolerant so please make sure you are not directly connecting 5V signals to this board or it will be damaged. Also, as opposed to Arduino Nano boards that support 5V operation, the 5V pin does NOT supply voltage but is rather connected, through a jumper, to the USB power input.

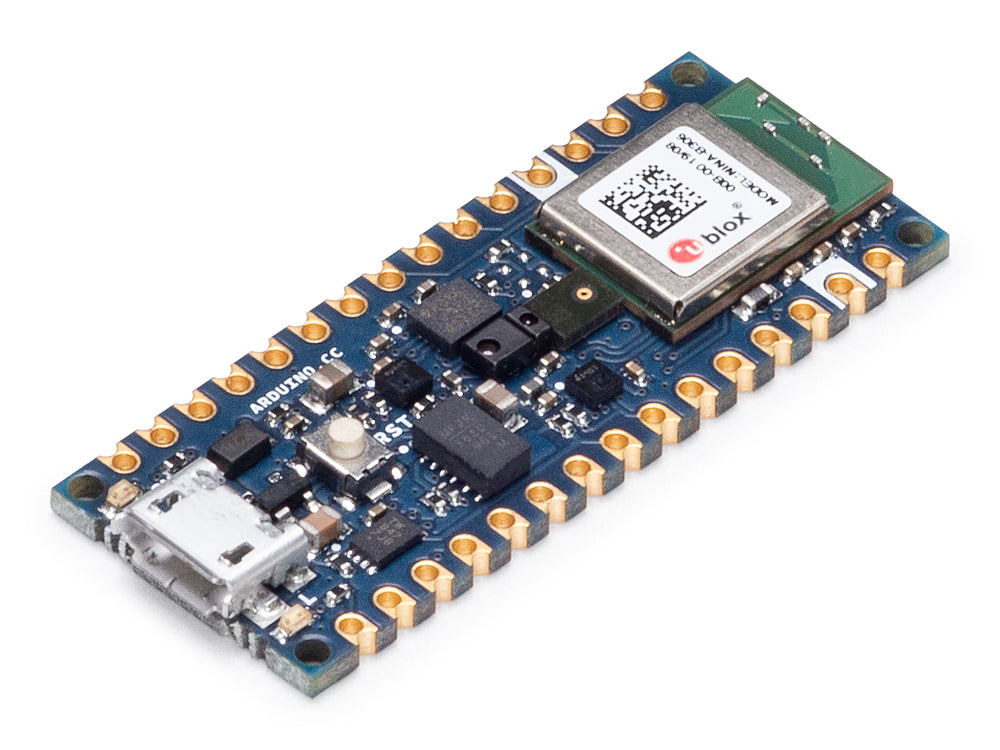

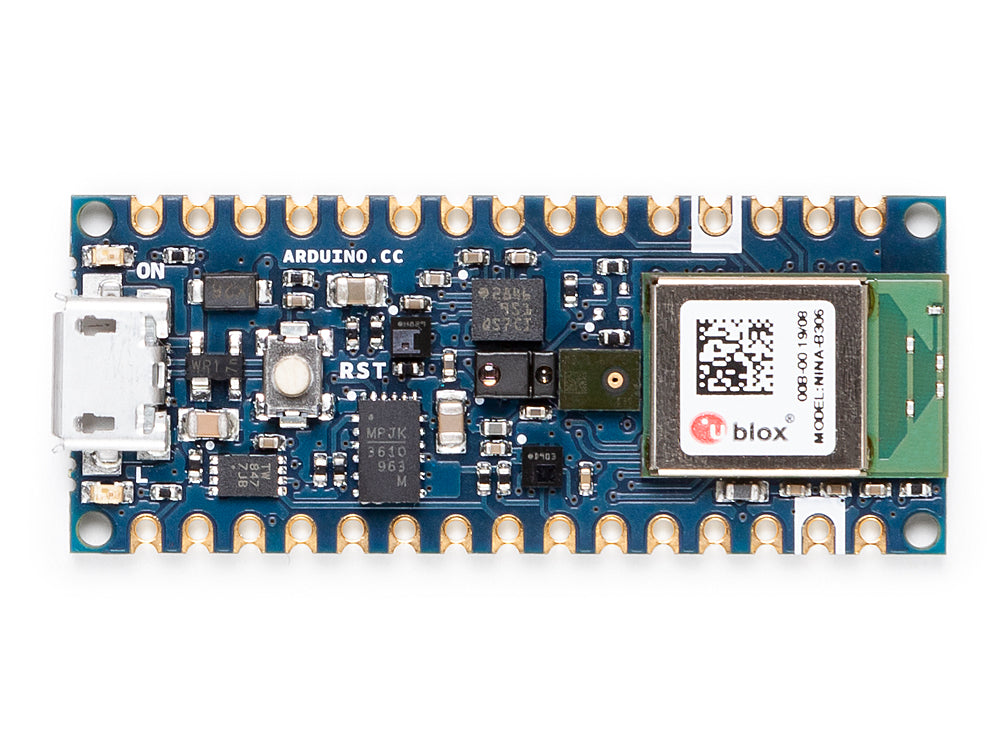

The Bluetooth is managed by a NINA B306 module.
The IMU is a LSM9DS1 and it is managed through I2C.
The LPS22HB reads barometric pressure and environmental temperature.
The HTS221 senses relative humidity.
The ADPS-9960 is a digital proximity, ambient light, RGB and gesture sensor.
The MP34DT05 is the digital microphone
Crypto keys are managed by the ATECC608A crypto chip.
The board has a two 15 pins connectors - one on each side -, pin to pin compatible with the original Arduino Nano.
Pin | Funcion | Type | Description |
1 | D13 | Digital | GPIO |
2 | +3V3 | Power Out | Internally generated power output to external devices |
3 | AREF | Analog | Analog Reference; can be used as GPIO |
4 | A0/DAC0 | Analog | ADC in/DAC out; can be used as GPIO |
5 | A1 | Analog | ADC in; can be used as GPIO |
6 | A2 | Analog | ADC in; can be used as GPIO |
7 | A3 | Analog | ADC in; can be used as GPIO |
8 | A4/SDA | Analog | ADC in; I2C SDA; Can be used as GPIO (*) |
9 | A5/SCL | Analog | ADC in; I2C SCL; Can be used as GPIO(*) |
10 | A6 | Analog | ADC in; can be used as GPIO |
11 | A7 | Analog | ADC in; can be used as GPIO |
12 | VUSB | Power In/Out | Normally NC; can be connected to VUSB pin of the USB connector by shorting a jumper |
13 | RST | Digital In | Active low reset input (duplicate of pin 18) |
14 | GND | Power | Power Ground |
15 | VIN | Power In | Vin Power input |
16 | TX | Digital | USART TX; can be used as GPIO |
17 | RX | Digital | USART RX; can be used as GPIO |
18 | RST | Digital | Active low reset input (duplicate of pin 13) |
19 | GND | Power | Power Ground |
20 | D2 | Digital | GPIO |
21 | D3/PWM | Digital | GPIO; can be used as PWM |
22 | D4 | Digital | GPIO |
23 | D5/PWM | Digital | GPIO; can be used as PWM |
24 | D6/PWM | Digital | GPIO; can be used as PWM |
25 | D7 | Digital | GPIO |
26 | D8 | Digital | GPIO |
27 | D9/PWM | Digital | GPIO; can be used as PWM |
28 | D10/PWM | Digital | GPIO; can be used as PWM |
29 | D11/MOSI | Digital | SPI MOSI; can be used as GPIO |
30 | D12/MISO | Digital | SPI MISO; can be used as GPIO |
(*) As opposed to other Arduino Nano boards, pins A4 and A5 have an internal pull up and default to be used as an I2C Bus so usage as analog inputs is not recommended. opposed to Arduino Nano boards that support 5V operation, the 5V pin does NOT supply voltage but is rather connected, through a jumper, to the USB power input.

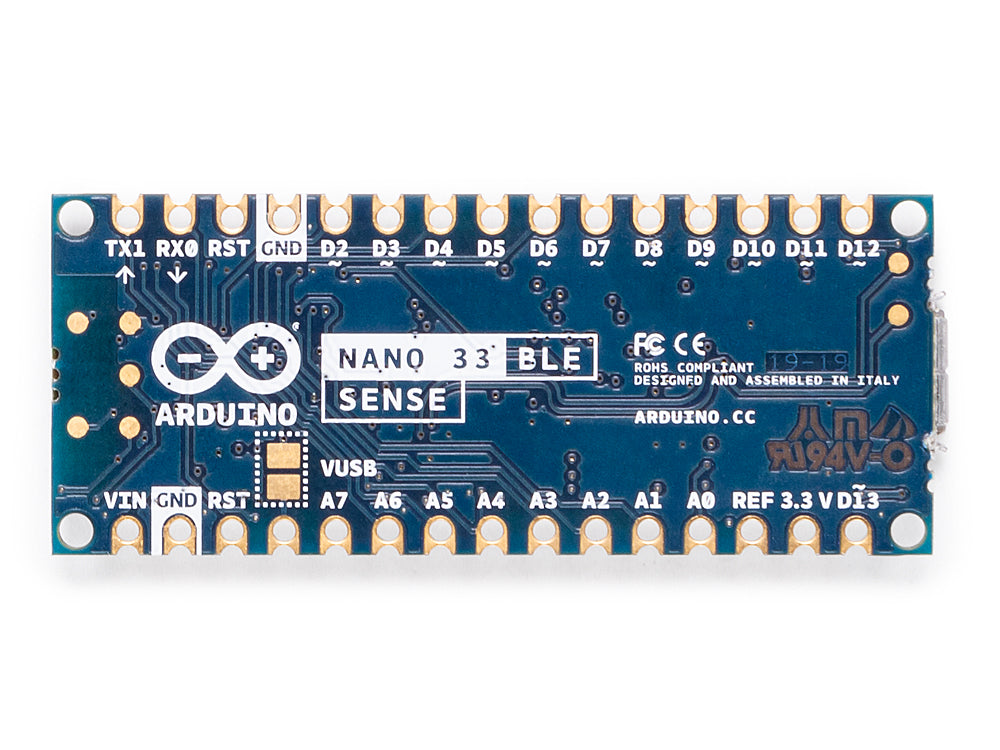

On the bottom side of the board, under the communication module, debug signals are arranged as 3x2 test pads with 100 mil pitch. Pin 1 is the bottom left one with the USB connector on the left and the test pads on the right.
Pin | Function | Type | Description |
1 | +3V3 | Power Out | Internally generated power output to be used as voltage reference |
2 | SWD | Digital | nRF52480 Single Wire Debug Data |
3 | SWCLK | Digital In | nRF52480 Single Wire Debug Clock |
5 | GND | Power | Power Ground |
6 | RST | Digital In | Active low reset input |
