PHPoC Blue

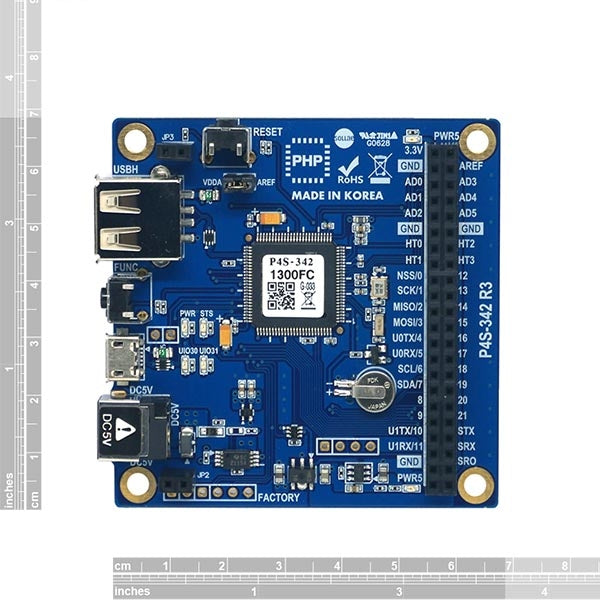

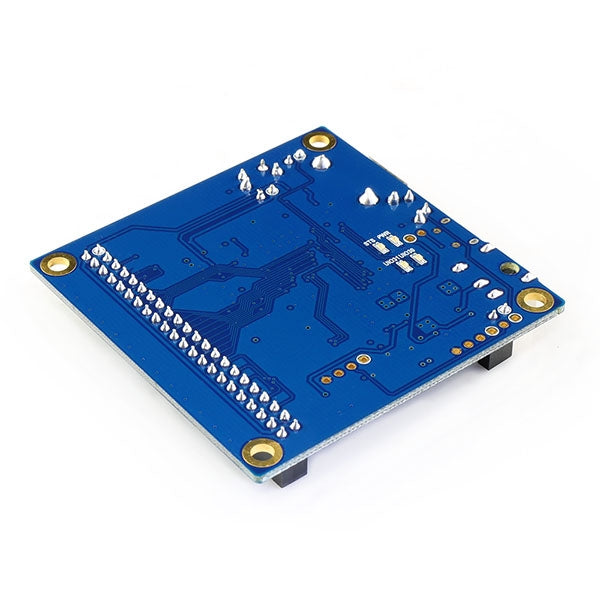

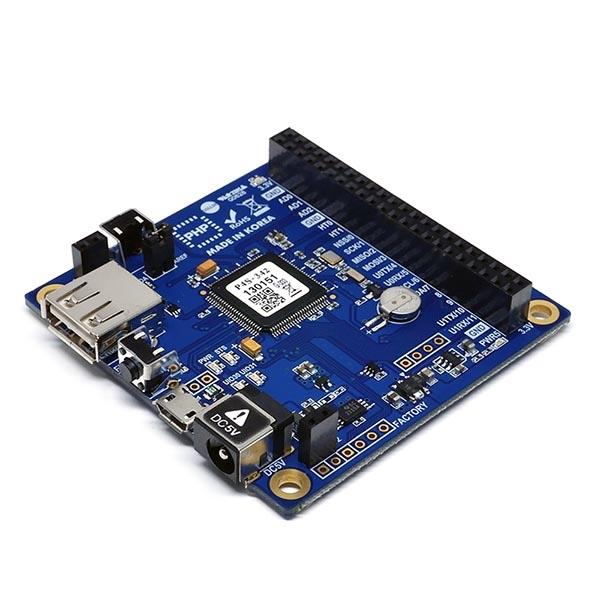

PHPoC Blue (P4S-342) is a wireless LAN programmable board embedded with a PHPoC interpreter. It supports various interfaces to connect with sensors and equipment. For wireless LAN connectivity, USB wireless LAN adapter is provided. Your devices can be controlled and monitored via smart phone. Also, it is designed to be stackable for you to implement additional functions with PHPoC expansion boards.
- PHPoC (PHP on Chip) interpreter embedded
- Uploading and debugging codes via USB
- IEEE 802.11b/g (USB Wireless LAN adapter required)
- 10 x digital input/output port
- 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
- 6 x analogue input port
- HTTP/SSH/Websocket server
- Web page customization available (accessible with smart devices)
Hardware
Specifications
|
Processor |
|
|
Core |
Cortex-M4 168MHz |
|
Flash |
System-512K Bytes, User-512K Bytes |
|
SRAM |
192K Bytes |
|
|
|
|
Power Input |
|
|
Input Voltage |
5V±10% |
|
Input Port |
DC jack or USB device port |
|
Max Current |
DC jack : 1.5A, USB device port : 500mA |
|
|
|
|
Network Interface |
|
|
Wireless LAN |
IEEE802.11b/g with a USB dongle |
|
|
|
|
USB Interface |
|
|
USB Host |
Wireless LAN interface with a USB dongle |
|
USB Device |
PC interface for programming |
|
|
|
|
DIO |
|
|
Type |
3.3V CMOS level digital I/O |
|
Ports |
Maximum 22 ports |
|
Mode |
Input/Output, push-pull/open-drain, pull-up/pull-down |
|
|
|
|
Communication |
|
|
UART |
2 ports (RXD, RXD, RTS, CTS) with hardware flow control |
|
SPI |
1 port |
|
I2C |
1 port (100Kbps or 400Kbps) |
|
|
|
|
ADC |
|
|
Resolution |
12bits |
|
Channels |
6 |
|
|
|
|
Hardware Timer/Counter |
|
|
Mode |
PWM output, Pulse output, Toggle output, Capture |
|
Unit |
mili-seconds or micro-seconds |
|
Channels |
4 |
|
|
|
|
RTC |
|
|
Battery |
Rechargeable battery (5.8mAh) |
|
Peripherals |
Realtime Clock, 4KB Backup SRAM |
|
|
|
|
LED |
|
|
System LED |
Power, Status, 3.3V, PWR5 |
|
User LED |
uio0.30, uio0.31 |
|
|
|
|
Power Output |
|
|
3.3V Max Current |
1A |
|
PWR5 + 3.3V Max Current |
1.5A |
|
|
|
|
Dimension |
|
|
Dimension |
63.8mm X 65mm X 13mm |
|
Weight |
28g |
