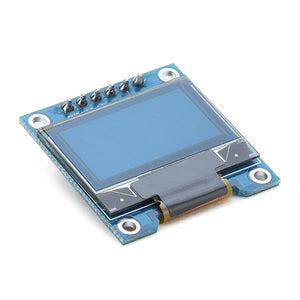

0.96" OLED LCD Module (Blue 6pin, SPI with GND VCC)

0.96" OLED Module (SPI, Blue)

SKU: 2007

BIN: 2-10-04-17-10

$11.39

Add $150.00 to your cart for free shipping to Canadian provinces!
*Free shipping to Canadian provinces for most order over $150!
*Free shipping within Canada for most order over $200!
See Shipping and Delivery for details.

Color:Blue -6pin
Interface: SPI
GND: Power Gound
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
RST: MOSI data (High level 2.2V-5.5V)
D/C: Data/Command (High level 2.2V-5.5V)

Feature:

Color: Blue
Resolution: 128x64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30°C to 70°C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD1306
