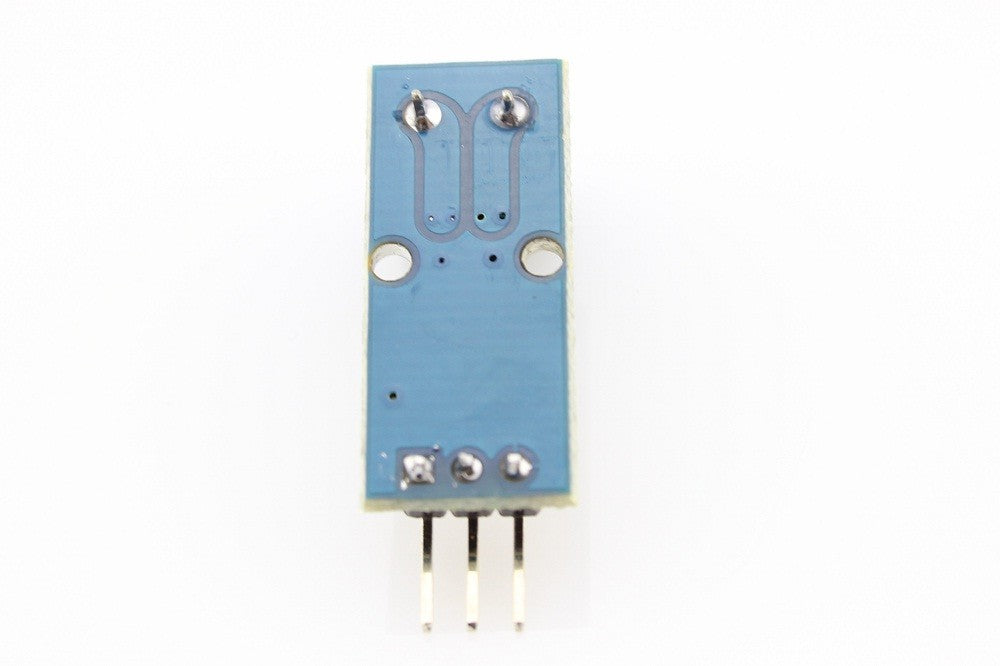

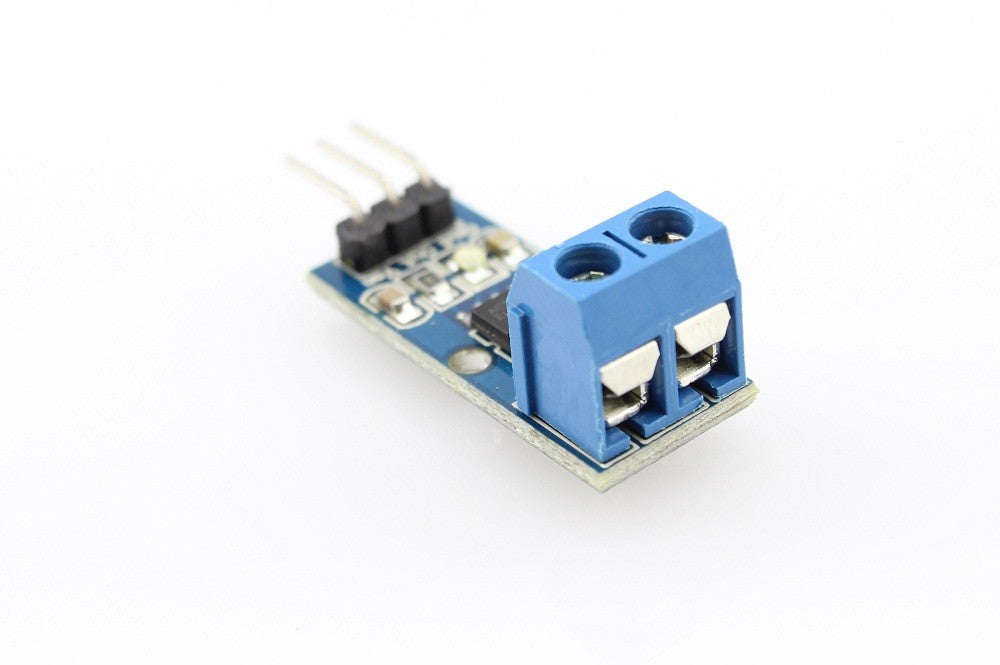

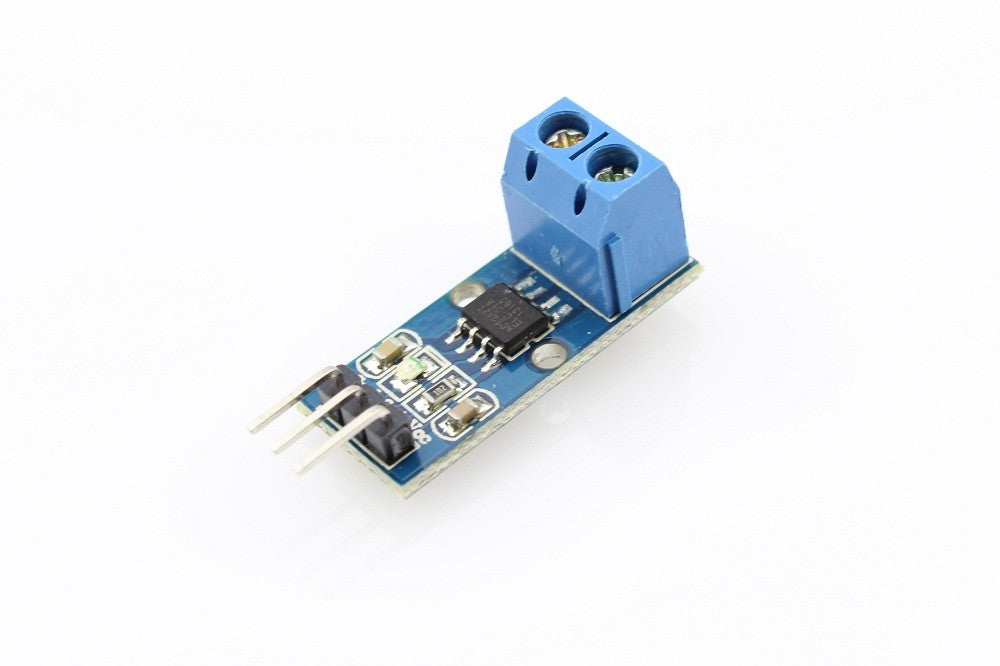

ACS712 Current Sensor Module (30A Max)

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. This ACS721 current module is based on an ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via the analog I / O port of Arduino. There are also the 5A and 20A versions for your choice

Specification

• Supply Voltage: 4.5V~5.5V DC
• Measure Current Range: -30A~ 30A
• Sensitivity: 66mV/A

Resource:

• Product Usage Guide
• ACS712 Datasheet
• BRIEF OVERVIEW OF ALLEGRO ACS712 Part 1 (Embedded Lab)
• BRIEF OVERVIEW OF ALLEGRO ACS712 Part 2 (Embedded Lab)
