Description:
The ESP32 Development Board combines the advanced ESP-WROOM-32 and ESP32-S chips, offering seamless WiFi and Bluetooth connectivity. With dual-core processors and versatile I/O pins, this compact board is ideal for various robotics projects, including smart home devices, wearables, and industrial IoT solutions. Its low power consumption and robust design make it suitable for a wide range of applications.
Specifications:
- Compatible with Bluetooth v4.2 BR/EDR and BLE specification
- Class-1, Class-2 and Class-3 transmitter without external power amplifier
- Frequncy range: 2.4 GHZ ~ 2.5 GHZ
- 520 kB (8 kB RTC FAST Memory included) of on-chip SRAM for data and instructions
- Integrated 802.11 b/g/n WIFI transceiver
- Operating voltage: 2.2 to 3.6V operating range
- Operating current: 80mA
- Operating temperature range: -40°C ~ +80°C
Warning: The working voltage of the ESP32 pins is 3.3 volts. If you want to connect ESP32 to other devices that operate at 5volts, you need to use a level shifter to convert the voltage level.

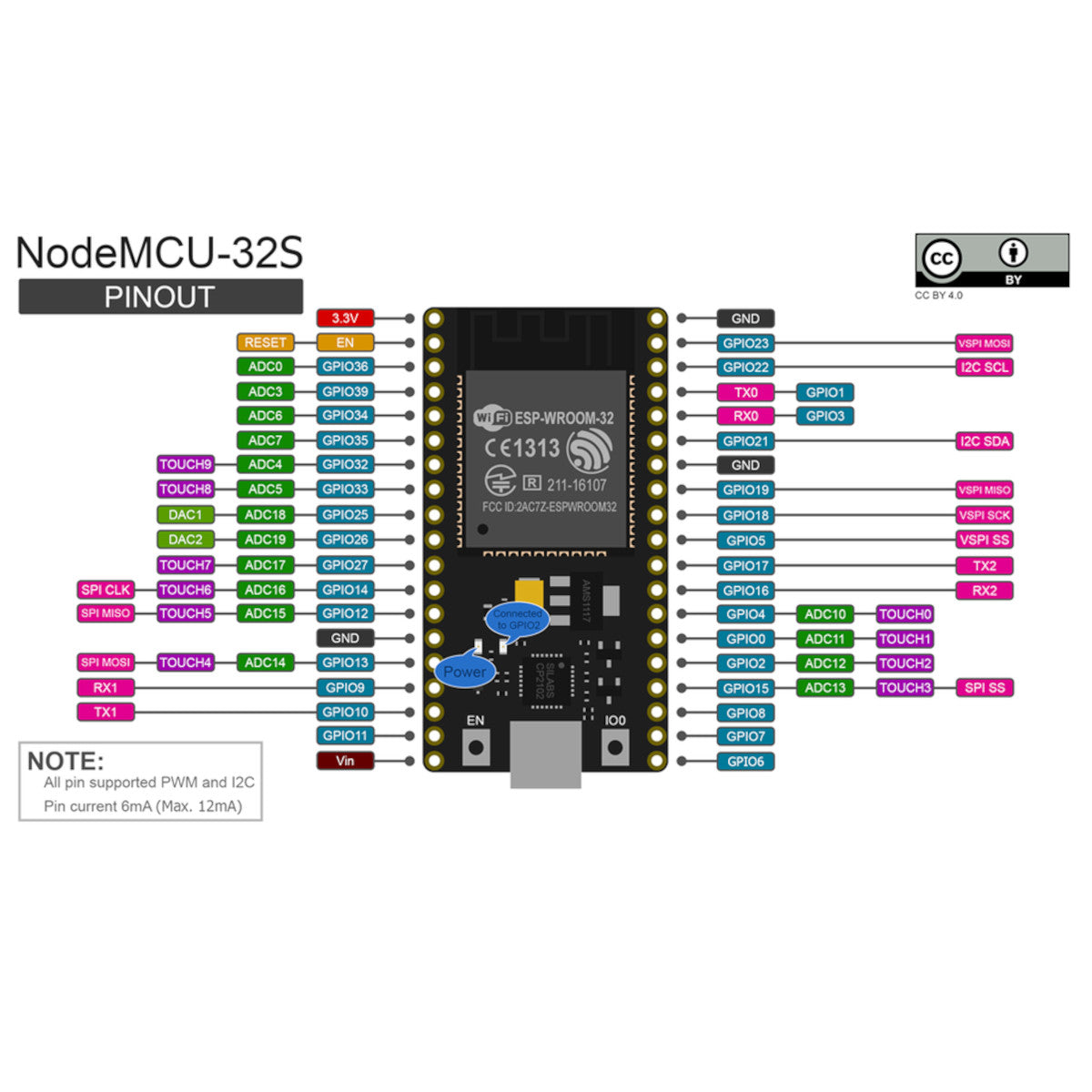

Pinout:
